BreakDim
Breaks the select dimensions on the specified points.
Getting Started
To launch the plug-in, use the following commands
ABreakDim
Shortcut key for BreakDim.
The following prompt is displayed.
Type a shortcut key to assign to command BreakDim or "." for remove the shortcut key.
BreakDim
Breaks the select dimensions on the specified points.
If the point is off of an object, it is automatically projected on to the object.
The following prompts are displayed.If the point is off of an object, it is automatically projected on to the object.
Usage
List of Prompts
Select dimensions or Right-Click to Create a linear dimension:
Specifies an object selection method.
Specify break point or [SpaceBar for Mid between 2 Points][eXit]:
Specify break point or [SpaceBar for Mid between 2 Points][eXit]:
Select dimensions or Right-Click to Create a linear dimension:
Specify first extension line origin: Specify second extension line origin:
Specify break point or [SpaceBar for Mid between 2 Points][eXit]:

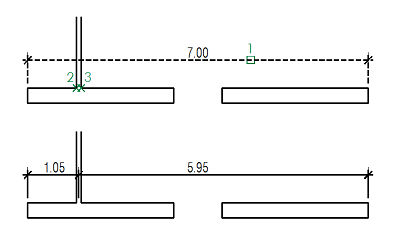

Screenshots
Installation and Uninstallation
The installer that ran when you downloaded this plug-in from Autodesk Exchange has already installed the plug-in. You may need to restart AutoCAD to activate the plug-in.To uninstall this plug-in, click Control Panel > Programs > Programs and Features (Windows 7/8) or Control Panel > Add or Remove Programs (Windows XP), and uninstall as you would any other application from your system.
Additional Information
Known Issues
None.Contact
Please Visit: http://acgrouproject.blogspot.com.es//Support Information
Email us at acgrouproject@gmail.com with feedback or requests for enhancements.Version History
1.0.0
Added support to AutoCAD 2014 (No change in version number)
1.0.0
Original release
